CONE BOTTOM TANKS

STANDARD DRAIN TANKS
DEN HARTOG
45º CONE BOTTOM
TANKS
DEN HARTOG CONE BOTTOM STANDS
DEN HARTOG
15° CONE BOTTOM
TANK STANDS
DRAIN TANK STANDS
DEN HARTOG
45º CONE BOTTOM
TANK STANDS
NORWESCO CONE BOTTOM TANKS
NORWESCO
CONE BOTTOM TANKS
FOR STEEL STANDS
45º DEN HARTOG FULL DRAIN TANK & STAND
DEN HARTOG
45º FULL DRAIN
TANK & STAND
NORWESCO CONE BOTTOM TANK STANDS
NORWESCO
STEEL
TANK STANDS
CONE BOTTOM BATCH TANKS
DEN HARTOG
CONE BOTTOM
BATCH TANKS
NORWESCO CONE BOTTOM TANKS WITH POLY STANDS
NORWESCO
CONE BOTTOM TANKS
WITH POLY STAND
CONE BOTTOM TANKS
DEN HARTOG
15º OPEN TOP/CONE BOTTOM BATCH TANKS

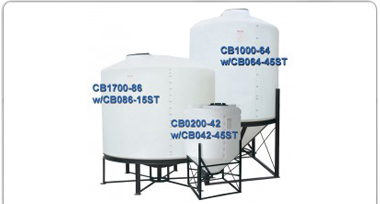

45º DEN HARTOG CONE BOTTOM TANKS

CONE BOTTOM TANKS ARE SELECTED WHEN A MORE COMPLETE DRAIN OUT OF STORED CHEMICAL IS REQUIRED IN INDOOR OR OUTDOOR INSTALLATIONS. TANKS REQUIRE STANDS TO SUPPORT THE CONICAL BOTTOMS. TANKS ARE MANUFACTURED FROM MEDIUM- OR HIGH-DENSITY POLYETHYLENE WITH U.V. INHIBITORS. TANK WALLS ARE TRANSLUCENT FOR LEVEL VIEWING AND EQUIPPED WITH GALLON INDICATORS.

* CLICK ON PART NUMBER  BELOW TO VIEW PDF DRAWING *

45º DEN HARTOG CONE BOTTOM TANKS

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO.ALPINE PICKUPGALLONSWEIGHTDIMHEIGHT (IN STAND)LIDFITTINGSPECIFIC GRAVITY
CB0345-52$480.00345102 lbs52 x 5870″12″2″2
CB0350-42$490.00350118 lbs42 x 8193″12″2″2
CB0500-52$530.00500130 lbs52 x 8192″12″2″2
CB1000-64$900.001000250 lbs64 x 98112″16″2″1.7
CB1490-64$1,170.001490342 lbs64 x 132146″16″2″1.7
PART NO.ALPINE PICKUPGALLONSWEIGHTDIMHEIGHT (IN STAND)LIDFITTINGSPECIFIC GRAVITY
CB0345-52$480.00345102 lbs52 x 5870″12″2″2
CB0350-42$490.00350118 lbs42 x 8193″12″2″2
CB0500-52$530.00500130 lbs52 x 8192″12″2″2
CB1000-64$900.001000250 lbs64 x 98112″16″2″1.7
CB1490-64$1,170.001490342 lbs64 x 132146″16″2″1.7

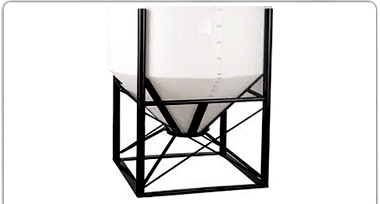

45º DEN HARTOG CONE BOTTOM STANDS

* CLICK ON PART NUMBER  BELOW TO VIEW PDF DRAWING *

Part No. Alpine Pickup Gallon Weight Clearance
CBFD042-45ST $260.00 350 82 lbs 10″
CB052-45ST $410.00 345 & 500 174 lbs 13″
CB064-45ST $625.00 1,000 & 1,490 320 lbs 14″
Part No.Alpine PickupGallonWeightClearance
CBFD042-45ST$260.0035082 lbs10″
CB052-45ST$410.00345 & 500174 lbs13″
CB064-45ST$625.001,000 & 1,490320 lbs14"
15º DEN HARTOG CONE BOTTOM TANK & STAND

15º DEN HARTOG FLAT TOP CONE BOTTOM TANK & STAND

* CLICK ON PART NUMBER  BELOW TO VIEW PDF DRAWING *

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO. ALPINE PICKUP GALLON WEIGHT DIM LID FITTING SPECIFIC GRAVITY
CB1150-90 $840.00 1,150 842 lbs 91″ x 67″ 16″ 2″ 1.7
CB090-15ST $875.00 CB1150-90 380 lbs
PART NO.ALPINE PICKUPGALLONWEIGHTDIMLIDFITTINGSPECIFIC GRAVITY
CB1150-90$840.001,150842 lbs91″ x 67"16″2″1.7
CB090-15ST$875.00CB1150-90380 lbs

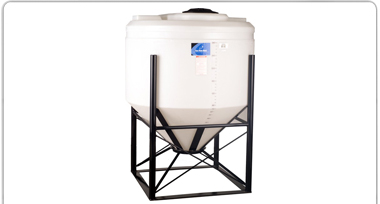

45º DEN HARTOG FULL DRAIN TANK
This 42″ diameter, 240 gallon, 45 degree cone bottom tank is designed for indoor or outdoor stationary applications. This tank requires the use of a stand for support. Tanks are manufactured from medium-density polyethylene with UV stabilizers. Tank stand features a welded steel construction and has a black powder coated finish.

45º DEN HARTOG FULL DRAIN TANK & STAND

* CLICK ON PART NUMBER  BELOW TO VIEW PDF DRAWING *

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO.ALPINE PICKUPGALLONWEIGHTDIMHEIGHTLIDFITTINGSPECIFIC GRAVITY
CBFD240-42$355.00240 Full Drain75 lbs42 x 5569″12″2″1.7
CBFD042-45ST$260.00Stand for 240 Full Drain
Weight 82, Clearance 10″
PART NO.ALPINE PICKUPGALLONWEIGHTDIMHEIGHTLIDFITTINGSPECIFIC GRAVITY
CBFD240-42$355.00240 Full Drain75 lbs42 x 5569″12″2″1.7
CBFD042-45ST$260.00Stand for 240 Full Drain
Weight 82, Clearance 10″

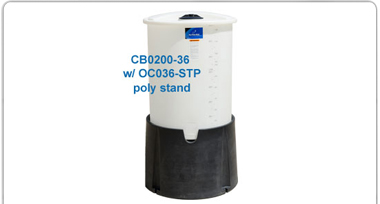

CONE BOTTOM BATCH TANKS

DEN HARTOG CONE BOTTOM BATCH TANKS

CONE BOTTOM BATCH TANKS ARE DESIGNED FOR INDOOR APPLICATIONS.  PERFECT FOR BATCH CHEMICAL/MIXER MOUNTING SYSTEMS AS WELL AS MANY OTHER APPLICATIONS. ALL TANKS FEATURE 8″ LIDS AND ONE STANDARD FITTING.  TANKS REQUIRE STAND FOR SUPPORT.  BOTH POLYETHYLENE AND METAL STANDS  ARE AVAILABLE FOR THE CONE BOTTOM BATCH TANKS.  TANKS ARE MANUFACTURED FROM MEDIUM-DENSITY POLYETHYLENE WITH U.V. INHIBITORS AND ARE DESIGNED FOR THE CONTAINMENT OF LIQUIDS UP TO 2.0 SPECIFIC GRAVITY.  TANK WALLS ARE TRANSLUCENT FOR LEVEL VIEWING AND EQUIPPED WITH LITER AND GALLON INDICATORS.

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO.ALPINE PICKUPGALLON CAPACITYWEIGHTDIMLIDFITTINGSPECIFIC GRAVITY
CB0055-23$150.00552623 x 378″1 1/2″2.0
CB0100-23$195.001003623 x 638″1 1/2″2.0
CB0145-36$245.001455236 x 418″2″2.0
CB0200-36$255.002005836 x 538″2″2.0
CB0250-36$330.002507636 x 658″2″2.0
CB0325-36$395.003259536 x 828″2″2.0
PART NO.ALPINE PICKUPGALLON CAPACITYWEIGHTDIMLIDFITTINGSPECIFIC GRAVITY
CB0055-23$150.00552623 x 378"1 1/2"2.0
CB0100-23$195.001003623 x 638"1 1/2"2.0
CB0145-36$245.001455236 x 418"2"2.0
CB0200-36$255.002005836 x 538"2"2.0
CB0250-36$330.002507636 x 658"2"2.0
CB0325-36$395.003259536 x 828"2"2.0

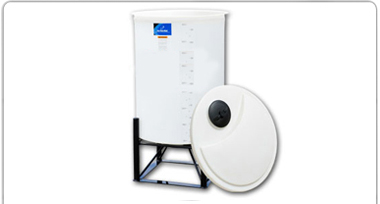

15º DEN HARTOG OPEN TOP CONE BOTTOM BATCH TANKS

15º DEN HARTOG OPEN TOP CONE
BOTTOM BATCH TANKS

OPEN TOP – CONE BOTTOM BATCH TANKS ARE DESIGNED FOR INDOOR APPLICATIONS. PERFECT FOR BATCH CHEMICAL/MIXER MOUNTING SYSTEMS AS WELL AS MANY OTHER APPLICATIONS. ALL TANKS FEATURE 8″ LIDS AND ONE STANDARD FITTING. CONE BOTTOM TANKS REQUIRE THE USE OF A STAND FOR SUPPORT. BOTH POLYETHYLENE AND METAL STANDS ARE AVAILABLE. OPEN TOP – CONE BOTTOM BATCH TANKS COME STANDARD WITH BOLT-ON LID, A POLYETHYLENE HINGED LID OPTION IS ALSO AVAILABLE. TANKS ARE MANUFACTURED FROM MEDIUM-DENSITY POLYETHYLENE WITH U.V. INHIBITORS AND ARE DESIGNED FOR THE CONTAINMENT OF LIQUIDS UP TO 2.0 SPECIFIC GRAVITY. TANK WALLS ARE TRANSLUCENT FOR LEVEL VIEWING AND EQUIPPED WITH LITER AND GALLON INDICATORS.





* CLICK ON PART NUMBER  BELOW TO VIEW PDF DRAWING *

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO.ALPINE PICKUPGALLON CAPACITYWEIGHTDIMLIDFITTINGSPECIFIC GRAVITY
OC0055-23$170.00552623 x 378″1 1/2″2.0
OC0100-23$220.001003623 x 638″1 1/2″2.0
OC0145-36$265.001455236 x 418″2″2.0
OC0200-36$275.002005836 x 538″2″2.0
OC0250-36$350.002507636 x 658″2″2.0
OC0325-36$415.003259536 x 828″2″2.0
PART NO.ALPINE PICKUPGALLON CAPACITYWEIGHTDIMLIDFITTINGSPECIFIC GRAVITY
OC0055-23$170.00552623 x 378"1 1/2"2.0
OC0100-23$220.001003623 x 638"1 1/2"2.0
OC0145-36$265.001455236 x 418"2"2.0
OC0200-36$275.002005836 x 538"2"2.0
OC0250-36$350.002507636 x 658"2"2.0
OC0325-36$415.003259536 x 828"2"2.0

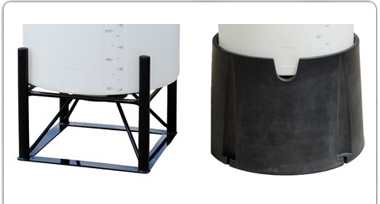

15º DEN HARTOG CONE BOTTOM STANDS

15º DEN HARTOG CONE BOTTOM STANDS

* CLICK ON PART NUMBER  BELOW TO VIEW PDF DRAWING *

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO. ALPINE PICKUP DESCRIPTION WEIGHT DIMENSIONS
CB023-15ST $140.00 23″ Metal Stand 37 lbs 20 x 20 x 24
CB036-15ST $250.00 36″ Metal Stand 84 lbs 31 x 31 x 26
OC023-STP $185.00 23″ Poly Cone Bottom Stand 15-deg 45 lbs 30 x 28
OC036-STP $310.00 36″ Poly Cone Bottom Stand 15-deg 92 lbs 44 x 30
PART NO.ALPINE PICKUPDESCRIPTIONWEIGHTDIMENSIONS
CB023-15ST $140.0023" Metal Stand37 lbs20 x 20 x 24
CB036-15ST$250.0036″ Metal Stand84 lbs31 x 31 x 26
OC023-STP$185.0023″ Poly Cone Bottom Stand 15-deg45 lbs30 x 28
OC036-STP$310.0036″ Poly Cone Bottom Stand 15-deg92 lbs44 x 30

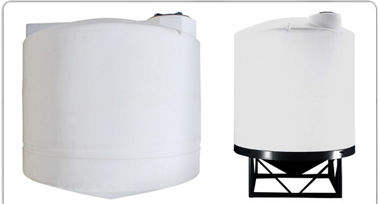

NORWESCO CONE BOTTOM FOR STEEL STANDS

NORWESCO CONE BOTTOM TANKS
FOR STEEL STANDS

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO. ALPINE PICKUP FOB HANFORD, CA GALLONS SLOPE DIA HEIGHT LID OUT COLOR GRAVITY
40066 $1,460.00 2500 30° 96″ 105″ 16″ 2″ WHITE 1.5/12.5#
40129 $1,640.00 2500 30° 96″ 105″ 16″ 2″ BLUE 1.9/15.8#
43054 $4,560.00 6000 10° 102″ 189″ 16″ 2″ WHITE 1.5/12.5#
43056 $5,125.00 6000 10° 102″ 189″ 16″ 2″ BLUE 1.9/15.8#
***PRICES QUOTED ARE FOR PAYMENT OTHER THAN CREDIT CARD (ADD 3% FOR CREDIT CARD/DEBIT CARD)
PART NO.ALPINE
PICKUP
FOB
HANFORD, CA
GALLONSSLOPEDIAHEIGHTLIDOUTCOLORGRAVITY
40066$1,460.00250030°96"105"16"2"WHITE1.5/12.5#
40129$1,640.00250030°96"105"16"2"BLUE1.9/15.8#
43054$4,560.00600010°102"189"16"2"WHITE1.5/12.5#
43056$5,125.00600010°102"189"16"2"BLUE1.9/15.8#
***PRICES QUOTED ARE FOR PAYMENT OTHER THEN CREDIT CARD (ADD 3% FOR CREDIT CARD/DEBIT CARD)
NORWESCO CONE BOTTOM STEEL STAND

NORWESCO CONE BOTTOM
STEEL STANDS

PART NO.ALPINE
PICKUP
FOB
HANFORD, CA
TANK#
60059$2,175.00 40066/40129
63675$3,005.00 43054/43056
***PRICES QUOTED ARE FOR PAYMENT METHODS OTHER THAN CREDIT CARD (ADD 3% FOR CREDIT CARD/DEBIT CARD)
PART NO.ALPINE
PICKUP
FOB
HANFORD, CA
TANK#
60059$2,175.0040066/40129
63675$3,005.0043054/43056
***PRICES QUOTED ARE FOR PAYMENT OTHER THEN CREDIT CARD (ADD 3% FOR CREDIT CARD/DEBIT CARD)

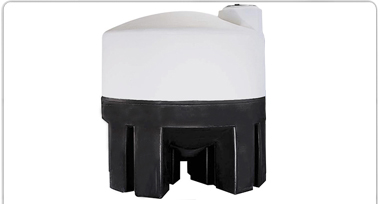

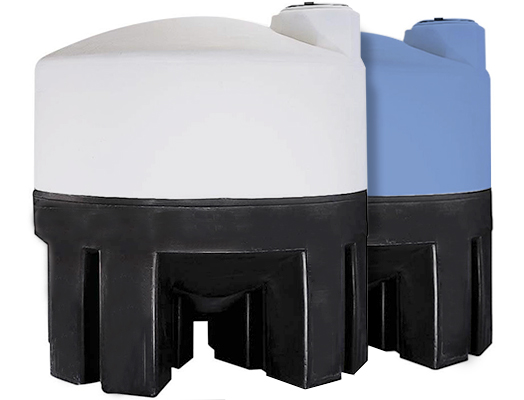

NORWESCO CONE BOTTOM TANKS WITH POLY STANDS

NORWESCO CONE BOTTOM TANKS
WITH POLY STANDS

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO.ALPINE PICKUPFOB HANFORD, CAGALLONSSLOPEDIAHEIGHTLIDOUTCOLORSPECIFIC GRAVITY
60113  175304349162WHITE1.5/12.5#
62343  300304961162WHITE1.5/12.5#
62441  31030437282WHITE1.5/12.5#
40289  500304987162WHITE1.5/12.5#
40359  1,050207386162WHITE1.5/12.5#
40813$1,850.00 1,600308996162WHITE1.5/12.5#
40815$2,075.00 1,600308996162BLUE1.9/15.8#
40672$2,635.00 2,5003099116162WHITE1.5/12.5#
40674$2,810.00 2,5003099116162BLUE1.9/15.8#
***PRICES QUOTED ARE FOR PAYMENT METHODS OTHER THEN CREDIT CARD (ADD 3% FOR CREDIT CARD/DEBIT CARD)
PART NO.ALPINE PICKUPFOB HANFORD, CAGALLONSSLOPEDIAHEIGHTLIDOUTCOLORSPECIFIC GRAVITY
60113175304349162WHITE1.5/12.5#
62343300304961162WHITE1.5/12.5#
6244131030437282WHITE1.5/12.5#
40289500304987162WHITE1.5/12.5#
403591,050207386162WHITE1.5/12.5#
40813$1,850.001,600308996162WHITE1.5/12.5#
40815$2,075.001,600308996162BLUE1.9/15.8#
40672$2,635.002,5003099116162WHITE1.5/12.5#
40674$2,810.002,5003099116162BLUE1.9/15.8#
***PRICES QUOTED ARE FOR PAYMENT OTHER THEN CREDIT CARD (ADD 3% FOR CREDIT CARD/DEBIT CARD)
6500 GALLON SNYDER CONE BOTTOM TANK AND STAND
GENERIC PHOTO

(CLICK PART NO. BELOW FOR TECHNICAL DRAWING)

USED 30° 6500 GALLON SNYDER INDUSTRIES
CONE BOTTOM TANK & STAND

“PREVIOUSLY OWNED BY MENON IND AS AN ULTRA PURE WATER HOLDING TANK”

  • FDA APPROVED FOOD GRADE POLYETHYLENE 177.1520
  • ANSI/NSF 61 APPROVED RESIN HDLPE
  • MEETS ASTM D1998 STANDARDS
  • MAX TEMP 120°F/48°C
  • UV INHIBITORS ADDED
6500 GALLON SNYDER CONE BOTTOM TANK AND STAND

TESTED CHEMICAL RESISTANCE

Acetic Acid 60% Concentration, Aluminum Sulfate 50% Concentration, Ammonium Sulfate 40% Concentration, Calcium Chloride 40% Concentration, DEF (Diesel Exhaust Fluid) 32.5% Concentration, Deionized Water , Ethyl Alcohol 100% Concentration, Ferrous Sulfate 20% Concentration, Isopropyl Alcohol 100% Concentration, Magnesium Chloride 30% Concentration, Methyl Alcohol 100% Concentration, Polymers (Deposition), Sodium Carbonate 30% Concentration, Surfactants, Water w/Ozone up to 10 PPM

PART NO.ALPINE PICKUPGALLONWEIGHTDIMLIDFITTINGSPECIFIC GRAVITY
7180000N$6,000.006,5002,800 LBS90" DIA X 273" HEIGHT16"2"1.5/12.5 LBS
79300000STAND INCLUDED W/TANK350 LBS296" HEIGHT W/STD
PART NO. ALPINE PICKUP GALLON WEIGHT DIM LID FITTING SPECIFIC GRAVITY
7180000N $6,000.00 6,500 2,800 LBS 90″ DIA X 273″ HEIGHT 16″ 2″ 1.5/12.5 LBS
79300000 INCLUDED W/TANK 350 LBS 296″ HEIGHT W/STD
