OPEN TOP BATCH TANKS

CONE BOTTOM TANKS
CONE BOTTOM
DEN HARTOG OPEN TOP FLAT BOTTOM BATCH TANKS
FLAT BOTTOM
DEN HARTOG CONE BOTTOM STANDS
STANDS
TANK STAND ADAPTER
TANK STAND ADAPTERS
HINGED LIDS
HINGED LIDS

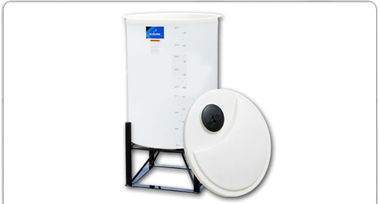

15º DEN HARTOG OPEN TOP CONE BOTTOM BATCH TANKS

15º DEN HARTOG OPEN TOP CONE
BOTTOM BATCH TANKS

OPEN TOP – CONE BOTTOM BATCH TANKS ARE DESIGNED FOR INDOOR APPLICATIONS. PERFECT FOR BATCH CHEMICAL/MIXER MOUNTING SYSTEMS AS WELL AS MANY OTHER APPLICATIONS. ALL TANKS FEATURE 8″ LIDS AND ONE STANDARD FITTING. CONE BOTTOM TANKS REQUIRE THE USE OF A STAND FOR SUPPORT. BOTH POLYETHYLENE AND METAL STANDS ARE AVAILABLE. OPEN TOP – CONE BOTTOM BATCH TANKS COME STANDARD WITH BOLT-ON LID, A POLYETHYLENE HINGED LID OPTION IS ALSO AVAILABLE. TANKS ARE MANUFACTURED FROM MEDIUM-DENSITY POLYETHYLENE WITH U.V. INHIBITORS AND ARE DESIGNED FOR THE CONTAINMENT OF LIQUIDS UP TO 2.0 SPECIFIC GRAVITY. TANK WALLS ARE TRANSLUCENT FOR LEVEL VIEWING AND EQUIPPED WITH LITER AND GALLON INDICATORS.





* CLICK ON PART NUMBER  BELOW TO VIEW PDF DRAWING *

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO.ALPINE PICKUPGALLON CAPACITYWEIGHTDIMLIDFITTINGSPECIFIC GRAVITY
OC0055-23$170.00552623 x 378″1 1/2″2.0
OC0100-23$220.001003623 x 638″1 1/2″2.0
OC0145-36$265.001455236 x 418″2″2.0
OC0200-36$275.002005836 x 538″2″2.0
OC0250-36$350.002507636 x 658″2″2.0
OC0325-36$415.003259536 x 828″2″2.0
PART NO.ALPINE PICKUPGALLON CAPACITYWEIGHTDIMLIDFITTINGSPECIFIC GRAVITY
OC0055-23$170.00552623 x 378"1 1/2"2.0
OC0100-23$220.001003623 x 638"1 1/2"2.0
OC0145-36$265.001455236 x 418"2"2.0
OC0200-36$275.002005836 x 538"2"2.0
OC0250-36$350.002507636 x 658"2"2.0
OC0325-36$415.003259536 x 828"2"2.0

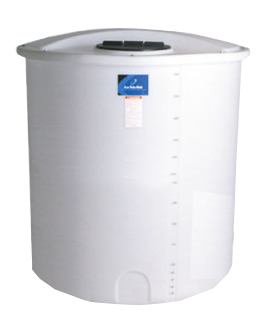

DEN HARTOG OPEN TOP FLAT BOTTOM
BATCH TANKS

OPEN TOP TANKS ARE SELECTED FOR COLLECTION SYSTEMS, TEMPORARY LIQUID STORAGE, OR AS SECONDARY CONTAINMENT FOR VERTICAL TANKS IN INDOOR OR OUTDOOR INSTALLATIONS. TANKS ARE MANUFACTURED FROM MEDIUM OR HIGH-DENSITY POLYETHYLENE WITH U.V. INHIBITORS. TANK WALLS ARE TRANSLUCENT FOR LEVEL VIEWING AND EQUIPPED WITH GALLON INDICATORS.

* CLICK ON PART NUMBER  BELOW TO VIEW PDF DRAWING *

DEN HARTOG OPEN TOP FLAT BOTTOM BATCH TANKS

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO.ALPINE PICKUPGALLONWEIGHTDIMLIDFITTINGSPECIFIC GRAVITY
OP0055-23$155.005526 lbs23 x 368″1″2.0
OP0100-23$215.0010036 lbs23 x 628″1″2.0
OP0145-36$260.0014552 Lbs36 x 398″1″2.0
OP0200-36$275.0020058 lbs36 x 518″1 1/2″2.0
OP0250-36$350.0024076 lbs36 x 618″1 1/2″2.0
OP0325-36$415.0032592 lbs36 x 808″2″2.0
PART NO.ALPINE PICKUPGALLONWEIGHTDIMLIDFITTINGSPECIFIC GRAVITY
OP0055-23$155.005526 lbs23 x 368"1"2.0
OP0100-23$215.0010036 lbs23 x 628"1"2.0
OP0145-36$260.0014552 Lbs36 x 398"1"2.0
OP0200-36$275.0020058 lbs36 x 518"1 1/2"2.0
OP0250-36$350.0025076 lbs36 x 618"1 1/2"2.0
OP0325-36$415.0032592 lbs36 x 808"2"2.0
15º DEN HARTOG CONE BOTTOM STANDS

15º DEN HARTOG CONE BOTTOM STANDS

* CLICK ON PART NUMBER  BELOW TO VIEW PDF DRAWING *

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO. ALPINE PICKUP DESCRIPTION WEIGHT DIMENSIONS
CB023-15ST $140.00 23″ Metal Stand 37 lbs 20 x 20 x 24
CB036-15ST $250.00 36″ Metal Stand 84 lbs 31 x 31 x 26
OC023-STP $185.00 23″ Poly Cone Bottom Stand 15-deg 45 lbs 30 x 28
OC036-STP $310.00 36″ Poly Cone Bottom Stand 15-deg 92 lbs 44 x 30
PART NO.ALPINE PICKUPDESCRIPTIONWEIGHTDIMENSIONS
CB023-15ST $140.0023" Metal Stand37 lbs20 x 20 x 24
CB036-15ST$250.0036″ Metal Stand84 lbs31 x 31 x 26
OC023-STP$185.0023″ Poly Cone Bottom Stand 15-deg45 lbs30 x 28
OC036-STP$310.0036″ Poly Cone Bottom Stand 15-deg92 lbs44 x 30

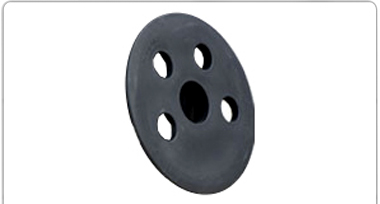

DEN HARTOG 23" VERTICAL STAND ADAPTOR

VERTICAL STAND ADAPTOR

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO. ALPINE PICKUP DESCRIPTION WEIGHT DIMENSIONS
19506 $30.00 23″ Vertical Stand Adaptor 7 lbs 23 x 5
19507 $40.00 36″ Vertical Stand Adaptor 15 lbs 36 x 6
PART NO.ALPINE PICKUPDESCRIPTIONWEIGHTDIMENSIONS
19506$30.0023″ Vertical Stand Adaptor7 lbs23 x 5
19507$40.0036″ Vertical Stand Adaptor15 lbs36 x 6

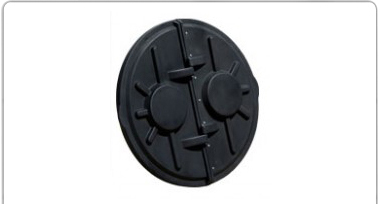

HINGED LID

HINGED LIDS

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO. ALPINE PICKUP DESCRIPTION WEIGHT
19502 $65.00 23″ Hinged Lid 8lb
19505 $90.00 36″ Hinged Lid 14lb
PART NO.ALPINE PICKUPDESCRIPTIONWEIGHT
19502$65.0023″ Hinged Lid8lb
19505$90.0036″ Hinged Lid14lb
