PCO TANKS

ACE/DEN HARTOG PCO TANKS
DEN HARTOG ACE
PCO TANKS
ACE/DEN HARTOG PCO TANK BANDS
DEN HARTOG ACE
PCO TANK BANDS
NORWESCO PCO TANKS
NORWESCO
PCO TANKS
PCO TANKS

DEN HARTOG ACE PCO TANKS

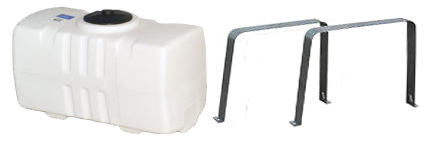

PCO TANKS CAN BE SELECTED FOR STATIONARY OR TRANSPORTABLE (NON DOT APPROVED) APPLICATIONS BOTH INDOORS AND OUTDOORS. THE TANKS HAVE A ROUNDED BOTTOM FOR BEST FLUID DRAINAGE AND A 2″ DEEP SUMP OPTION IS ALSO AVAILABLE. PCO TANKS MUST BE SECURELY ANCHORED FOR USE IN TRANSPORTABLE APPLICATIONS AND GALVANIZED STEEL BANDS ARE AVAILABLE FOR THIS PURPOSE. PCO300-37 COMES WITH AN INTERNAL BAFFLE FOR SUPPORT AND FLUID CONTROL. THE TANKS ARE MANUFACTURED FROM MEDIUM-DENSITY POLYETHYLENE WITH U.V. INHIBITORS AND DESIGNED FOR CONTAINMENT OF LIQUIDS OF UP TO 1.7 SPECIFIC GRAVITY.

300 GALLON TANKS COME WITH INTERNAL BAFFLE

VIEW TECHNICAL DRAWINGS BY CLICKING ON THE PART NUMBER BELOW.

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO. ALPINE PICKUP GALLONS DIA LENGTH HEIGHT LID OUT COLOR
PCO035-16W $120.00 35 16″ 35″ 21″ 5″ 1″ WHITE
PCO050-19W $140.00 50 19″ 38″ 23″ 8″ 1″ WHITE
PCO100-30W $220.00 100 30″ 38″ 29″ 8″ 1″ WHITE
PCO150-37W $260.00 150 37″ 48″ 29″ 12″ 1 1/4″ WHITE
PCO200-37W $315.00 200 37″ 48″ 38″ 12″ 1 1/4″ WHITE
PCO300-37W $575.00 300+ 37″ 69″ 40″ 16″ 2″ WHITE
+INTERNAL BAFFLE PLATE INSTALLED
PART NO.ALPINE PICKUPGALLONSDIALENGTHHEIGHTLIDOUTCOLOR
PCO035-16W$120.003516"35"21"5"1"WHITE
PCO050-19W$140.005019"38"23"8"1"WHITE
PCO100-30W$220.0010030"38"29"8"1"WHITE
PCO150-37W$260.0015037"48"29"12"1 1/4"WHITE
PCO200-37W$315.0020037"48"38"12"1 1/4"WHITE
PCO300-37W$575.00300+37"69"40"16"2"WHITE
+INTERNAL BAFFLE PLATE INSTALLED
STEEL TANK SECURING BANDS

DEN HARTOG ACE PCO TANK BANDS

PART NO. ALPINE PICKUP FOB HANFORD, CA GALLONS
PCO035-SB $27.00/PAIR 35
PCO050-SBP $32.00/PAIR 50
PCO100-SBP $35.00/PAIR 100
PCO150-SBP $48.00/PAIR 150
PCO200-SBP $70.00/PAIR 200
PCO300-SBP $85.00/PAIR 300
PART NO.ALPINE
PICKUP
FOB
HANFORD, CA
GALLONS
PCO035-SB$27.00/PAIR35
PCO050-SBP$32.00/PAIR50
PCO100-SBP$35.00/PAIR100
PCO150-SBP$48.00/PAIR150
PCO200-SBP$70.00/PAIR200
PCO300-SBP$85.00/PAIR300
NORWESCO PCO TANK

NORWESCO PCO TANKS

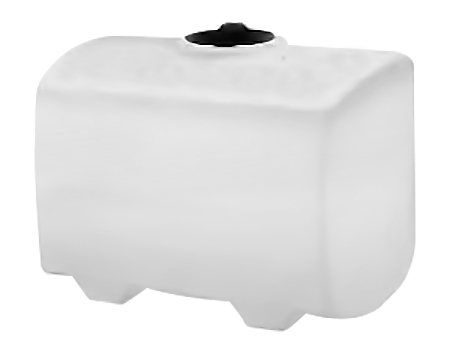

PCO tanks feature self-supporting legs, built-in, graduated gallon indicators and slosh-proof lids. The PCO tank’s self-supporting legs do not require any saddles or steel supports. Flat spots are molded into both ends to provide mounting areas for agitation equipment. The PCO is well suited for nursery, agricultural and lawn care applications.

VIEW TECHNICAL DRAWINGS BY CLICKING ON THE PART NUMBER BELOW.

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO. ALPINE PICKUP FOB HANFORD, CA GALLONS DIA LENGTH HEIGHT LID OUTLET COLOR
41254 35 19″ 25″ 23″ 5″ NONE WHITE
40664 50 19″ 38″ 22″ 8″ NONE WHITE
40668 100 30″ 38″ 28″ 8″ NONE WHITE
40669 150 36″ 48″ 28″ 8″ NONE WHITE
41413 200 36″ 48″ 37″ 8″ NONE WHITE
41381 300 37″ 69″ 37″ 16″ NONE WHITE
PART NO.ALPINE
PICKUP
FOB
HANFORD, CA
GALLONSDIALENGTHHEIGHTLIDOUTLETCOLOR
412543519"25"23"5"NONEWHITE
406645019"38"22"8"NONEWHITE
4066810030"38"28"8"NONEWHITE
4066915036"48"28"8"NONEWHITE
4141320036"48"37"8"NONEWHITE
4138130037"69"37"16"NONEWHITE
