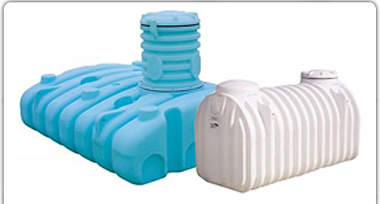

CISTERNS

DEN HARTOG CISTERNS
DEN HARTOG
CISTERNS
NORWESCO HOLDING TANKS
NORWESCO
HOLDING TANKS
NORWESCO BRUISER SEPTIC TANKS
NORWESCO BRUISER
SEPTIC/CISTERN TANKS

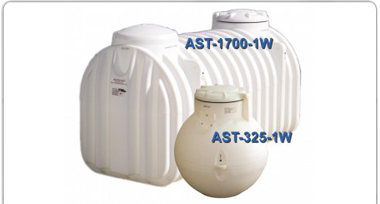

DEN HARTOG CISTERNS

* CLICK ON PART NUMBER  BELOW TO VIEW PDF DRAWING *

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO.ALPINE PICKUPCAPACITYWEIGHTSPECS
AST-0325-1W$730.00325 Gallon Cistern, Sphere13454" DIA x 56" TALL
AST-0525-1W$960.00525 Gallon Cistern, Sphere19463" DIA x 74" TALL
AST-0850-1W$1,335.00850 Gallon Cistern25960" L x 70" W x 60" H
AST-1150-1W$1,845.001150 Gallon Cistern41460" L x 101" W x 60" H
AST-1450-1W$2,130.001450 Gallon Cistern47358" L x 118" W x 72" H
AST-1700-1W$2,515.001700 Gallon Cistern56758" L x 137" W x 72" H
AST19214$135.00Manhole Extension – White32.5" DIA x 16" TALL
DEN HARTOG CISTERN RISER/EXTENSION

DEN HARTOG CISTERN RISER/EXTENSION

* CLICK ON PART NUMBER  BELOW TO VIEW PDF DRAWING *

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO. ALPINE PICKUP WEIGHT SPECIFICATIONS DIMENSIONS
AST-19214 $80.00 35 16″ Access Extension – White 32.5 x 16
PART NO.ALPINE PICKUPWEIGHTSPECIFICATIONSDIMENSIONS
AST19214$80.003516″ Access Extension – White32.5 x 16

NORWESCO LOW PROFILE CISTERN

* CLICK ON PART NUMBER  BELOW TO VIEW PDF DRAWING *

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO.ALPINE PICKUPCAPACITYSPECIFICATIONSCHAMBERSMANHOLE DIAMETER
44407$1860.001725 GALLON157"L x 69"W x 51"H22-20"
63833$80.00Manhole Extension20"D x 15"TALL
63834$90.00Manhole Extension20"D x 24" TALL

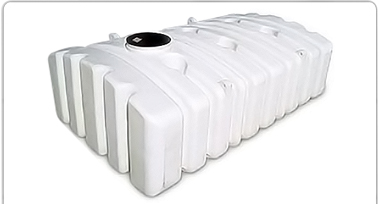

NORWESCO HOLDING TANKS

* CLICK ON PART NUMBER  BELOW TO VIEW PDF DRAWING *

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO.ALPINE PICKUPCAPACITYMANHOLESPECS
44079$5,185.002,500 GALLON20"159"L x 99"W x 51"H
44390$TBD3,525 GALLON20"211"L x 102"W x 51"H
44876$TBD5,025 GALLON20"211"L x 102"W x 73"H
63833$140.00Manhole Extension20"D x 15" TALL
63834$160.00Manhole Extension20"D x 24" TALL
NORWESCO 15" LOW PROFILE RISER / MANHOLE EXTENSION

LOW PROFILE RISERS/MANHOLE EXTENSION

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO. ALPINE PICKUP SPECIFICATIONS
63833 $80.00 15″TALL x 20″D
63834 $90.00 24″TALL x 20″D
PART NO.ALPINE PICKUPSPECIFICATIONS
63833$80.0015"TALL x 20"D
63834$90.0024"TALL x 20"D

DEN HARTOG - AQUIFER - LOW PROFILE CISTERNS

AQUIFER LOW PROFILE CISTERN TANK INSTALLATION GUIDELINES

AQUIFER LOW PROFILE CISTERN TANKS STRONG, DURABLE, QUALITY CONSTRUCTION IS DESIGNED FOR BULK COLLECTION AND STORAGE OF POTABLE OR NON-POTABLE WATER. TANKS CAN BE USED IN BELOW AND ABOVE GROUND APPLICATIONS. AQUIFERS CAN BE BURIED UP TO 28″ DEEP AND CAN BE BACKFILLED EMPTY.

  • SECTIONAL RIBBING DESIGNED TO WITHSTAND UP TO 400 PSF LOAD PRESSURE
  • MANUFACTURED FROM HIGH-DENSITY POLYETHYLENE WITH U.V. INHIBITORS
  • CONFORM TO THE REQUIREMENTS OF NSF/ANSI STANDARD 61
  • MANUFACTURED FROM FDA COMPLIANT RESINS
  • LOW PROFILE DESIGN WITH MULTIPLE FITTING FLATS TO ACCOMMODATE A VARIETY OF PLUMBING CONFIGURATIONS
  • TANKS CAN BE STACKED FOR SHIPPING AND STORAGE *MANUFACTURED FOR THE CONTAINMENT OF LIQUIDS WITH UP TO 1.7 SPECIFIC GRAVITY
DEN HARTOG - AQUIFER - LOW PROFILE CISTERNS

* CLICK ON PART NUMBER  BELOW TO VIEW PDF DRAWING *

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

Part No. Alpine Pickup Description Weight Dimensions
ACT2500-LPB $2,950.00 2500 Gallon Low Profile Cistern with Burial Lid 1031 lbs 98 x 158 x 54
ACT2500-LPG-16 $3,035.00 2500 Gallon Low Profile Cistern with 16″ Ground Access Assembly 1067 lbs 98 x 158 x 54
ACT-16053 $70.00 Aquifer 24″ Burial lid & Gasket 17 lbs 35 x 8
ACT-16054 $155.00 16″ Aquifer Ground Access Assembly 43 lbs 34 x 24
Part No.Alpine PickupDescriptionWeightDimensions
ACT2500LPG16$3,035.002500 Gallon Low Profile Cistern with 16" Ground Access Assembly1067 lbs98 x 158 x 54

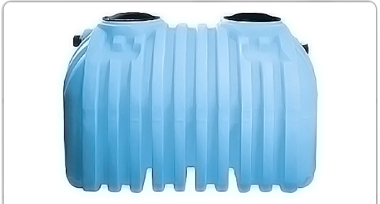

NORWESCO BRUISER SEPTIC/CISTERN TANKS

* CLICK ON PART NUMBER  BELOW TO VIEW PDF DRAWING *

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO.ALPINE PICKUPWEIGHTSPECIFICATIONSCHAMBERS
41820 403 lbs102″L x 60″W x 63″H2
41822 589 lbs135″L x 55″W x 70″H2
62396 Manhole Extension(24″H x 20″D)
62397 Manhole Extension(15″H x 20″D)
PART NO.ALPINE PICKUPCAPACITYWEIGHTSPECIFICATIONSCHAMBERS
41820$TBD1,000 GALLON403 lbs102"L x 60"W x 63"H2
41821
$TBD1,250 GALLON467 lbs116"L x 55"W x 70"H2
41822$TBD1,500 GALLON589 lbs135"L x 55"W x 70"H2
62397$TBDManhole Extension15"H x 20"D
62396$TBDManhole Extension24"H x 20"D
THE TANK SOURCE

OUR BELOW GROUND HOLDING AND CISTERN TANKS ARE INTENDED FOR BULK STORAGE OR COLLECTION OF POTABLE WATER AND DESIGNED FOR BELOW GROUND LEVEL INSTALLATIONS. CISTERN TANKS ARE MANUFACTURED FROM HIGH-DENSITY POLYETHYLENE WITH U.V. INHIBITORS. OUR CISTERN TANKS ARE FDA-APPROVED FOR POTABLE WATER.
