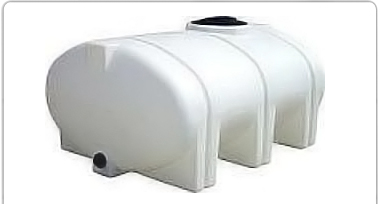

DEN HARTOG ELLIPTICAL LEG TANK
Free Standing Leg Tanks are selected when transportable (non DOT regulated) containment is required for indoor or outdoor applications. Leg Tanks are equipped with molded-in legs to support the tank and band locators for tie down. Tanks are manufactured from medium- or high-density polyethylene with U.V. inhibitors and designed for containment of liquids of up to 1.7 specific gravity. Tank walls are translucent for level viewing and equipped with gallon indicators.

DEN HARTOG ELLIPTICAL LEG TANK

* CLICK ON PART NUMBER  BELOW TO VIEW PDF DRAWING *

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO.ALPINE PICKUPDESCCAPACITYWTDIMLIDFITTING
FS1035-78$1,060.00Elliptical1035 Gallon
(Hoops Req.)		292 lbs78 x 90 x 5216″2″
FS1035-HP$235.00 | SET/31.66 OD – 1035 Gal Hoops
PART NO.ALPINE PICKUPDESCCAPACITYWTDIMLIDFITTING
FS0510-57$715.00Elliptical510 Gallon
(Hoops Req.)		164 lbs57 x 80 x 3916″2″
FS0510-HP$190.00510 Gal Hoops, SET/2
FS1035-78$1,165.00Elliptical1035 Gallon
(Hoops Req.)		292 lbs78 x 90 x 5216″2″
FS1035-HP$260.001035 Gal Hoops, SET/3

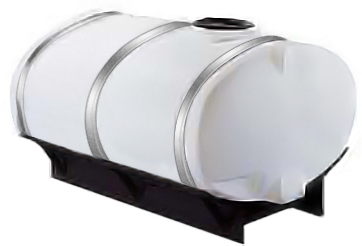

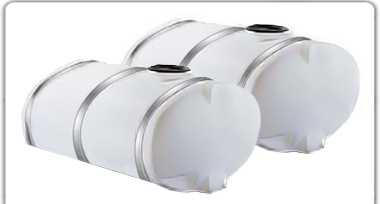

NORWESCO ELLIPTICAL TANK
Designed for larger volume applicator needs, the Norwesco elliptical tanks feature a low profile design and a low center of gravity for excellent visibility in the field and increased stability when towed. A deep sump permits complete drainage and the tanks feature an 8" or 16" fill-opening.

NORWESCO ELLIPTICAL TANKS

* CLICK ON PART NUMBER  BELOW TO VIEW PDF DRAWING *

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO. ALPINE
PICKUP		 FOB HANFORD, CA GALLONS WIDTH HEIGHT LENGTH LID OUT IN COLOR GRAVITY
41252 200 40″ 30″ 66″ 8″ 1 1/4″ – WHITE 1.5/12.5#
40327 300 48″ 36″ 70″ 16″ 1 1/4″ – WHITE 1.5/12.5#
40328 500 57″ 42″ 82″ 16″ 1 1/4″ – WHITE 1.5/12.5#
PART NO.ALPINE
PICKUP		FOB
HANFORD, CA		GALLONSWIDTHHEIGHTLENGTHLIDOUTINCOLORGRAVITY
4125220040"30"66"8"1 1/4"-WHITE1.5/12.5#
4032730048"36"70"16"1 1/4"-WHITE1.5/12.5#
4032850057"42"82"16"1 1/4"-WHITE1.5/12.5#

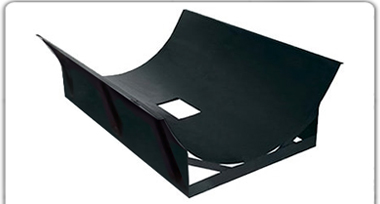

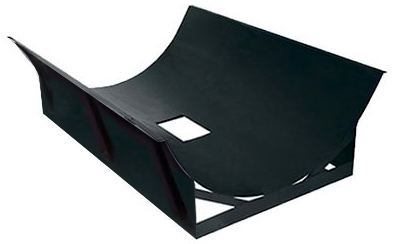

NORWESCO ELLIPTICAL TANK SKID
Unit consists of a black skid and appropriate bands and hardware to support the elliptical tank. The skids come with a pre-cut hole designed to fit Norwesco sumps.

NORWESCO ELLIPTICAL TANKS SKIDS

* CLICK ON PART NUMBER  BELOW TO VIEW PDF DRAWING *

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO. ALPINE
PICKUP		 FOB
HANFORD, CA		 GALLONS TANK NO.
63015 200 41252
63016 300 40327
63018 500 40328
PART NO.ALPINE
PICKUP		FOB
HANFORD, CA		GALLONSTANK NO.
6301520041252
6301630040327
6301850040328

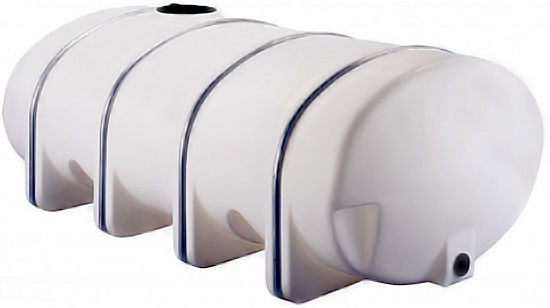

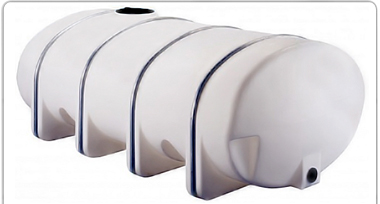

NORWESCO ELLIPTICAL LEG TANKS
This elliptical tank style is designed to provide the greatest capacity with the lowest center of gravity, making it the best design available for transporting larger volumes. Norwesco elliptical tanks feature molded-in legs that act as "baffles" to reduce sloshing and provide increased stability during transport. The 2650 & 3250 include an internal baffle system. All Norwesco elliptical leg tanks require full length bottom support as well as support bands. The 1600 & 3180 flat bottoms require full length support but do not require bands.

NORWESCO ELLIPTICAL LEG TANKS

BANDS SOLD SEPARATELY

* CLICK ON PART NUMBER  BELOW TO VIEW PDF DRAWING *

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO. ALPINE PICKUP FOB HANFORD, CA GALLONS WIDTH HEIGHT LENGTH LID OUT IN COLOR GRAVITY
40387 1635 71 58 142 16 2 WHITE 1.5/12.5#
40602 1635 71 58 142 16 2 BLACK 1.5/12.5#
40388 1635 71 58 142 16 2 BLUE 1.9/15.8#
41890 1635 71 58 142 16 2 BLACK 1.9/15.8#
40618 2035 84 56 142 16 2 WHITE 1.5/12.5#
40621 2035 84 56 142 16 2 BLACK 1.5/12.5#
40623 2035 84 56 142 16 2 BLUE 1.9/15.8#
40775 2035 84 56 142 16 2 BLACK 1.9/15.8#
40547 2635 90 72 140 16 3 2 WHITE 1.5/12.5#
40751 2635 90 72 140 16 3 2 BLACK 1.5/12.5#
40283 2635 90 72 140 16 3 2 BLUE 1.9/15.8#
41294 2635 90 72 140 16 3 2 BLACK 1.9/15.8#
41237 4035 92 75 192 16 3 2 WHITE 1.5/12.5#
45394 4035 92 75 192 16 3 2 BLACK 1.5/12.5#
41269 4035 92 75 192 16 3 2 BLUE 1.9/15.8#
42011 4035 92 75 192 16 3 2 BLACK 1.9/15.8#
PART NO.ALPINE
PICKUP		FOB
HANFORD, CA		GALLONSWIDTHHEIGHTLENGTHLIDOUTINCOLORGRAVITY
40387$1985.00$1565.0016357158142162WHITE1.5/12.5#
40602$1985.00$1565.0016357158142162BLACK1.5/12.5#
4038816357158142162BLUE1.9/15.8#
4189016357158142162BLACK1.9/15.8#
40618$2430.00$1950.0020358456142162WHITE1.5/12.5#
40621$2430.00$1950.0020358456142162BLACK1.5/12.5#
4062320358456142162BLUE1.9/15.8#
4077520358456142162BLACK1.9/15.8#
40547263590721401632WHITE1.5/12.5#
40751263590721401632BLACK1.5/12.5#
40283263590721401632BLUE1.9/15.8#
41294263590721401632BLACK1.9/15.8#
41267403592751921632WHITE1.5/12.5#
45394403592751921632BLACK1.5/12.5#
41269403592751921632BLUE1.9/15.8#
42011403592751921632BLACK1.9/15.8#

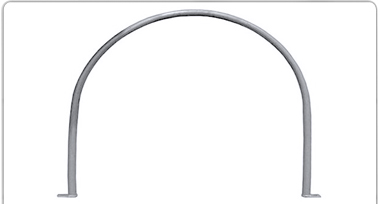

NORWESCO ELLIPTICAL TANK STEEL BAND
Norwesco bands are custom fabricated to support the Norwesco tanks and are galvanized for added corrosion protection. Whether using the tank in a stationary position or for transport, bands are necessary to ensure that the tank retains its shape and integrity.

NORWESCO ELLIPTICAL LEG TANK STEEL BANDS

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO. ALPINE PICKUP FOB HANFORD, CA TANK SIZE
60586 $80.00 EACH $75.00 (4 pieces required) 1635
63840 $140.00 EACH $130.00 (4 pieces required) 2035
60353 2335
62832 4035
PART NO.ALPINE
PICKUP		FOB
HANFORD, CA		TANK SIZE
60586$80.00 EACH$75.00 (4 pieces required)1635
63840$140.00 EACH$130.00 (4 pieces required)2035
603532335
628324035

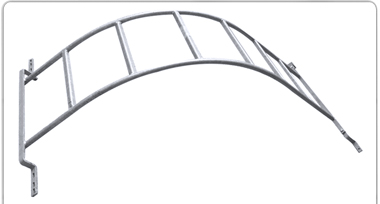

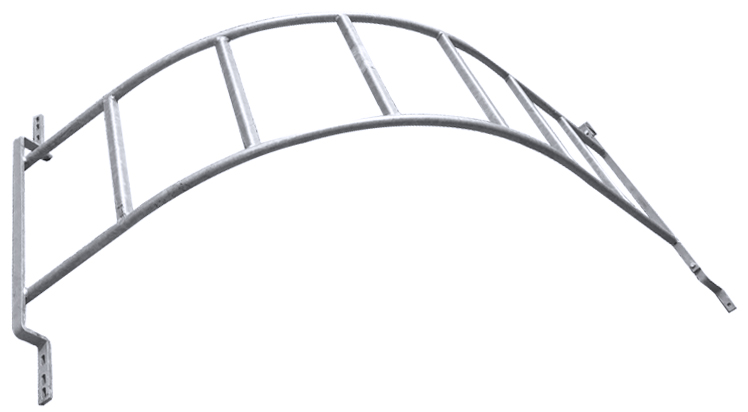

NORWESCO ELLIPTICAL LEG TANK LADDER

NORWESCO ELLIPTICAL LEG TANK LADDERS

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO. ALPINE PICKUP FOB HANFORD, CA TANK SIZE
60354 2635
63033 4035
PART NO.ALPINE
PICKUP		FOB
HANFORD, CA		TANK SIZE
603542635
630334035
