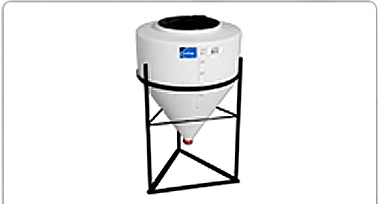

INDUCTOR TANKS

INDUCTOR TANKS
INDUCTOR
TANKS

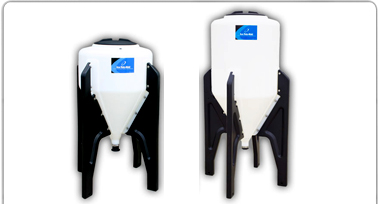

BLOW MOLD INDUCTOR TANKS WITH POLY STAND SET
INDUCTOR TANKS
WITH POLY STANDS
45º DEN HARTOG FULL DRAIN TANK & STAND
DEN HARTOG 45º FULL DRAIN
TANK & STAND
DEN HARTOG INDUCTOR TANKS

DEN HARTOG INDUCTOR TANKS

BEER & WINE FERMENTATION TANKS

INDUCTOR TANKS ARE SELECTED AS SUPPLY TANKS FOR APPLICATION SYSTEMS AND WHEN A MORE COMPLETE DRAIN OUT OF STORED LIQUIDS IS REQUIRED IN INDOOR OR OUTDOOR APPLICATIONS. TANKS REQUIRE STANDS TO SUPPORT THE CONICAL BOTTOMS. TANKS ARE MANUFACTURED FROM MEDIUM-DENSITY POLYETHYLENE WITH U.V. INHIBITORS AND DESIGNED FOR CONTAINMENT OF LIQUIDS OF UP TO 1.7 SPECIFIC GRAVITY. TANK WALLS ARE TRANSLUCENT FOR LEVEL VIEWING AND EQUIPPED WITH GALLON INDICATORS.

* CLICK ON PART NUMBER  BELOW TO VIEW PDF DRAWING *

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

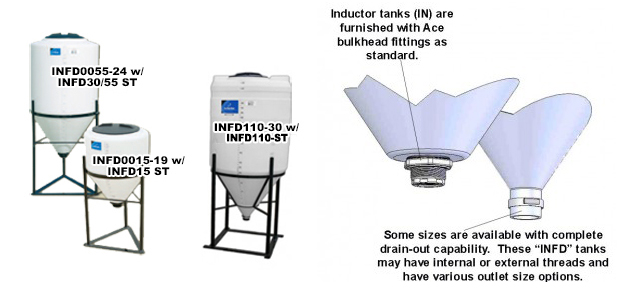

DEN HARTOG FULL DRAIN INDUCTOR TANKS

PART NO.ALPINE PICKUPCAPACITYWEIGHTDIMLIDFITTING
INFD10-15$65.0010 Gallon Full Drain1015 x 258″1 1/2″ FPT BOSS
INFD15-19$70.0015 Gallon Full Drain1519 x 2712″2″ FPT
INFD30-24$105.0030 Gallon Full Drain1524 x 3312″1 1/2″ FPT
INFD55-24$155.0055 Gallon x 24 Full Drain2224 x 4612″1 1/2″ FPT
INFD110-30$240.00110 Gallon Full Drain4430 x 5612″2″ FPT
PART NO.ALPINE PICKUPCAPACITYWEIGHTDIMLIDFITTING
INFD10-15†$65.0010 Gallon Full Drain1015 x 258″1 1/2″ FPT BOSS
INFD15-19†$70.0015 Gallon Full Drain1519 x 2712"2" FPT
INFD30-24†$105.0030 Gallon Full Drain1524 x 3312"1 1/2″ FPT
INFD55-24†$155.0055 Gallon x 24 Full Drain2224 x 4612″1 1/2″ FPT
INFD110-30$240.00110 Gallon Full Drain4430 x 5612"2" FPT

DEN HARTOG FULL DRAIN INDUCTOR TANK STANDS

PART NO. ALPINE PICKUP CAPACITY WEIGHT
INFD7/10-ST $50.00 10 Gallon – 15″ diameter tanks 12
INFD15-ST $75.00 15 Gallon – 19″ diameter tanks 16
INFD30/55-ST $80.00 55 Gallon – 24″ diameter tanks 19
INFD710ST $135.00 110 Gallon – 30″ diameter tanks 40
PART NO.ALPINE PICKUPCAPACITYWEIGHT
INFD7-10-ST†$50.0010 Gallon - 15" diameter tanks12
INFD15-ST†$75.0015 Gallon - 19" diameter tanks16
INFD30/55-ST$80.0055 Gallon - 24" diameter tanks19
INFD710ST$135.00110 Gallon - 30" diameter tanks40

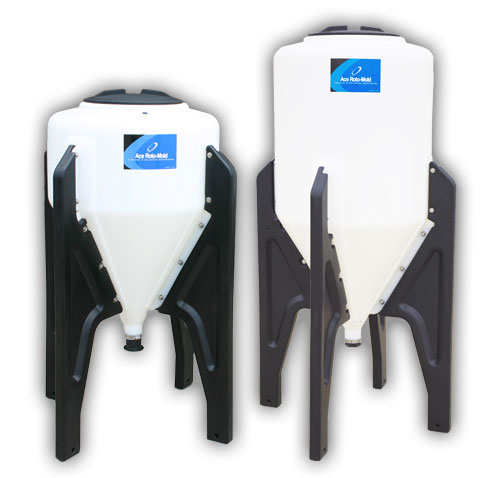

BLOW MOLD INDUCTOR TANKS WITH POLY STAND SET

BLOW MOLDED INDUCTOR TANKS
WITH POLY STAND

* CLICK ON PART NUMBER  BELOW TO VIEW PDF DRAWING *

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO.ALPINE PICKUPCAPACITYWEIGHTDIMLIDFITTING
IBFD10-SET $125.0010 Gallon Full Drain3719″ x 22″ x 33″12″2″
IBFD15-SET $140.0015 Gallon Full Drain3919″ x 22″ x 33″12″2″
IBFD35-SET$185.0035 Gallon Full Drain4125″ x 25″ x 43″12″2″
IBFD60-SET$210.0060 Gallon Full Drain4725″ x 25″ x 55″12″2″
PART NO.ALPINE PICKUPCAPACITYWEIGHTDIMLIDFITTING
IBFD10-SET $125.0010 Gallon Full Drain3719″ x 22″ x 33″12″2"
IBFD15-SET $140.0015 Gallon Full Drain3919″ x 22″ x 33″12″2"
IBFD35-SET$185.0035 Gallon Full Drain4125″ x 25″ x 43″12"2"
IBFD60-SET$210.0060 Gallon Full Drain4725″ x 25″ x 55″12"2"
45º DEN HARTOG FULL DRAIN TANK
This 42″ diameter, 240 gallon, 45 degree cone bottom tank is designed for indoor or outdoor stationary applications. This tank requires the use of a stand for support. Tanks are manufactured from medium-density polyethylene with UV stabilizers. Tank stand features a welded steel construction and has a black powder coated finish.

45º DEN HARTOG FULL DRAIN TANK & STAND

* CLICK ON PART NUMBER  BELOW TO VIEW PDF DRAWING *

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO.ALPINE PICKUPGALLONWEIGHTDIMHEIGHTLIDFITTINGSPECIFIC GRAVITY
CBFD240-42$355.00240 Full Drain75 lbs42 x 5569″12″2″1.7
CBFD042-45ST$260.00Stand for 240 Full Drain
Weight 82, Clearance 10″
PART NO.ALPINE PICKUPGALLONWEIGHTDIMHEIGHTLIDFITTINGSPECIFIC GRAVITY
CBFD240-42$355.00240 Full Drain75 lbs42 x 5569″12″2″1.7
CBFD042-45ST$260.00Stand for 240 Full Drain
Weight 82, Clearance 10″
