SEPTIC TANK CHAMBERS

ADS CHAMBERS
ADS SEPTIC CHAMBERS
INFILTRATOR CHAMBERS
INFILTRATOR CHAMBERS
INSTALLATION GUIDE
ADS CHAMBERS

ADS CHAMBERS

THE UNIQUE STRUCTURAL DESIGN OF ARC CHAMBERS MAKES IT ABLE TO HANDLE ANY CONVENTIONAL LEACHFIELD SYSTEM CHALLENGE WITHOUT SACRIFICING PERFORMANCE. THE SEPTIC LEACHING CHAMBER IS A STURDY, LIGHTWEIGHT POLYETHYLENE PLASTIC UNIT THAT COMBINES MAXIMIZED INFILTRATIVE SURFACE AREA AND STORAGE CAPACITY. THIS COMBINATION ALLOWS FOR INCREASED EFFLUENT DISPERSAL PERFORMANCE AND IMPROVED STRUCTURAL INTEGRITY.

  • INJECTION–MOLDED FROM HIGH DENSITY POLYETHYLENE (HDPE) FOR LIGHTWEIGHT AND STURDY DESIGN

  • 20–DEGREE INTEGRAL ARTICULATING JOINT THAT IS IDEAL FOR EITHER STRAIGHT OR CONTOURED SEPTIC LEACHFIELD APPLICATIONS

  • TRUE CORRUGATED CHAMBER DESIGN ELIMINATES FLAT SURFACES AND PROVIDES INCREASED LOAD BEARING CAPABILITY IN THE TRENCH

  • “LOCK AND DROP” JOINT PROVIDES A MORE POSITIVE CONNECTION DURING INSTALLATION AND BACKFILL

  • A UNIVERSAL INLET/OUTLET END CAP

  • INSPECTION VENT PORTS ON EVERY UNIT WITH EASY–TO–REMOVE KNOCKOUTS FOR MAXIMUM JOB SITE FLEXIBILITY

  • CONVENIENT FIVE–FOOT LENGTHS ARE EASY TO HANDLE

  • DIAMOND PLATE TEXTURE INCREASES SLIP RESISTANCE AND ENHANCES EASE OF INSTALLATION

  • SIDE PORT COUPLER SNAPS IN PLACE TO ALLOW SIDE ENTRY AT ANY JOINT THROUGHOUT THE TRENCH LINE

* CLICK ON PART NUMBER  BELOW TO VIEW PDF DRAWING *

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO.PRICEDESCRIPTION
ARC24 CHAMBER$30.7524W x 60L x 12H
ARC24 END CAP$12.00
ARC24 SIDE PORT COUPLER$14.00
ARC36 CHAMBER$32.0034W x 60L x 12H
ARC36 END CAP$15.00
PART NO.PRICEDESCRIPTION
ARC24 CHAMBER$45.9024W x 60L x 12H
ARC24 END CAP$18.0024" END CAP
ARC24 SIDE PORT COUPLER$24.0024" SIDE PORT COUPLER
ARC36 CHAMBER$56.2534W x 60L x 12H
ARC36 END CAP$20.0036" END CAP
ARC36 SIDE PORT COUPLER$26.4536" SIDE PORT COUPLER
INFILTRATOR CHAMBERS

INFILTRATOR CHAMBERS

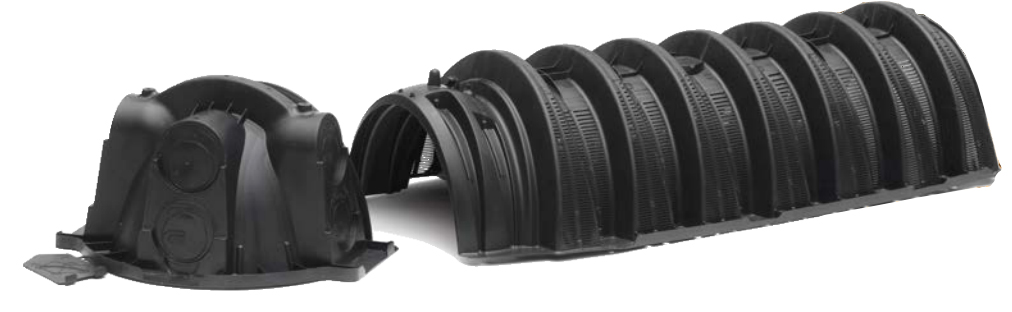

QUICK4 EQUALIZER 36 CHAMBER CAN BE INSTALLED IN A 24″ WIDE TRENCH. SIZE: 22″W X 48″L X 12″H (559 MM X 1346 MM X 305) EFFECTIVE LENGTH: 48″ (1219 MM)

MULTIPORT ENDCAP HAS SIX MOLDED-IN HIGH AND LOW INLETS TO ALLOW PIPING TO ENTER OR EXIT FROM MULTIPLE DIRECTIONS. SIZE: 22″W X 16″L X 12″H (559 MM 406 MM X 305 MM) ADDITIONAL LENGTH PER TRENCH: 25.2″ (640 MM) INVERT HEIGHT: 6″ (152 MM)

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO. PRICE DESCRIPTION
Infiltrator Chamber $25.00 22W x 48L x 12H
Infiltrator EndCap $14.00  End Cap
PART NO.PRICEDESCRIPTION
Infiltrator Chamber22W x 48L x 12H
Infiltrator EndCap End Cap
