FUEL TANKS

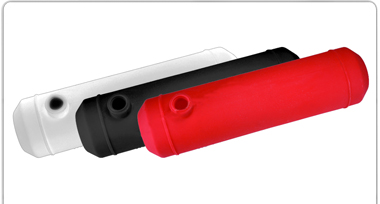

POLY GAS TANKS
POLY GAS TANKS

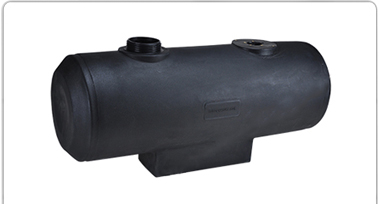

POLY TANKS WITH SUMP
POLY GAS TANKS WITH SUMP​

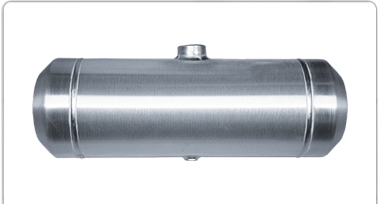

ALUMINUM GAS TANKS
ALUMINUM GAS TANKS

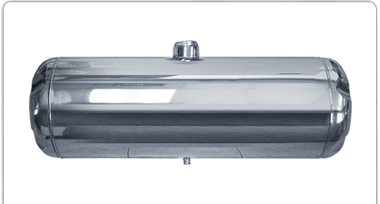

STAINLESS STEEL GAS TANKS
STAINLESS STEEL GAS TANKS

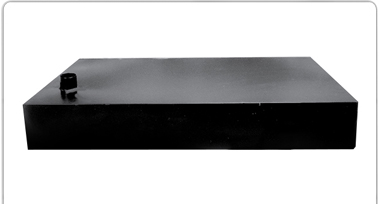

LONG RAGER GAS TANK
LONG RAGER GAS TANK

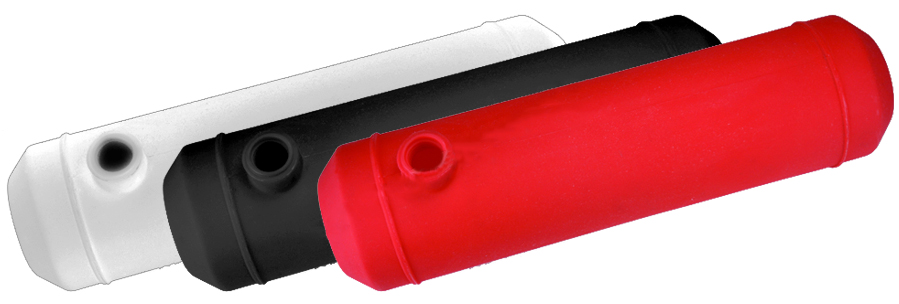

POLY GAS TANKS

POLY GAS TANKS

ORDER STRAPS AND CAPS SEPARATELY. ALL TANKS COME WITH 1/4" NPT OUTLET.
USE WITH 201216 OR 201220 CAPS

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO. ALPINE PICKUP GAL DIA LENGTH COLOR
TKP830BK  6 1/2   8″ 30″ BLACK
TKP830R 6 1/2 8″ 30″ RED
TKP830W 6 1/2 8″ 30″ WHITE
TKP833BK 7 8″ 33″ BLACK
TKP833R 7 8″ 33″ RED
TKP836BK 7 3/4 8″ 36″ BLACK
TKP836R 7 3/4 8″ 36″ RED
TKP836W 7 3/4 8″ 36″ WHITE
TKP1030BK 10 1/4 10″ 30″ BLACK
TKP1033BK 11 1/4 10″ 33″ BLACK
TKP1033R 11 1/4 10″ 33″ RED
TKP1033W 11 1/4 10″ 33″ WHITE
TKP1036BK 12 1/4 10″ 36″ BLACK
TKP1036R 12 1/4 10″ 36″ RED
TKP1036W 12 1/4 10″ 36″ WHITE
TKP1040BK 13 1/2 10″ 40″ BLACK
TKP1040R 13 1/2 10″ 40″ RED
TKP1040W 13 1/2 10″ 40″ WHITE
TKP1230BK 14 1/2 12″ 30″ BLACK
TKP1230W 14 1/2 12″ 30″ WHITE
TKP1233BK 16 12″ 33″ BLACK
PART NO.ALPINE
PICKUP
GALDIALENGTHCOLOR
TKP830BK 6 1/2 gallon8"30"BLACK
TKP830R6 1/2 gallon8"30"RED
TKP830W6 1/2 gallon8"30"WHITE
TKP833BK7 gallon8"33"BLACK
TKP833R7 gallon8"33"RED
TKP836BK7 3/4 gallon8"36"BLACK
TKP836R7 3/4 gallon8"36"RED
TKP836W7 3/4 gallon8"36"WHITE
TKP1030BK10 1/4 gallon10"30"BLACK
TKP1033BK11 1/4 gallon10"33"BLACK
TKP1033R11 1/4 gallon10"33"RED
TKP1033W11 1/4 gallon10"33"WHITE
TKP1036BK12 1/4 gallon10"36"BLACK
TKP1036R12 1/4 gallon10"36"RED
TKP1036W12 1/4 gallon10"36"WHITE
TKP1040BK13 1/2 gallon10"40"BLACK
TKP1040R13 1/2 gallon10"40"RED
TKP1040W13 1/2 gallon10"40"WHITE
TKP1230BK14 1/2 gallon12"30"BLACK
TKP1230W14 1/2 gallon12"30"WHITE
TKP1233BK16 gallon12"33"BLACK

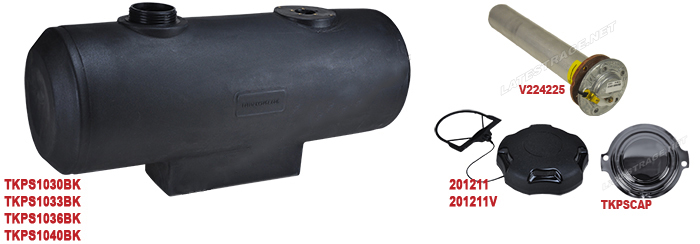

POLY GAS TANKS WITH SUMP

POLY GAS TANKS WITH SUMP

  • THESE TANKS WILL USE AUTOMETER, VDO STANDARD AND VDO TUBE TYPE FUEL LEVEL SENDERS.

  • THE LARGE SUMP AREA IS PLUMBED WITH TWO 1/4NPT FITTINGS FOR POSITIVE PICK UP AND FUEL INJECTION APPLICATIONS.

  • TANKS ARE MANUFACTURED WITH GOVERNMENT APPROVED FOR FUEL APPLICATIONS CROSS-LINKED POLYETHYLENE MATERIAL.

  • USE WITH FUEL LEVEL SENDER V224225 AND/OR FUEL SENDER COVER TKPSCAP

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO.ALPINE
PICKUP
GALDIALENGTHCOLORSUMP
TKPS1030BK 10 1/4 GALLON10″30″BLACKWITH SUMP
TKPS1033BK 11 1/4 GALLON10″33″BLACKWITH SUMP
TKPS1036BK 12 1/2 GALLON10″36″BLACKWITH SUMP
TKPS1040BK 13 3/4 GALLON10″40″BLACKWITH SUMP
PART NO.ALPINE
PICKUP
GALDIALENGTHCOLORSUMP
TKPS1030BK10 1/4 gallon10"30"BLACKWITH SUMP
TKPS1033BK11 1/4 gallon10"33"BLACKWITH SUMP
TKPS1036BK12 1/2 gallon10"36"BLACKWITH SUMP
TKPS1040BK13 3/4 gallon10"40"BLACKWITH SUMP
POLY GAS TANK CAPS

POLY GAS TANK CAPS

PART NO.ALPINE
PICKUP
SPECIFICATIONSDESCRIPTION
TKPS1030BK 3 1/2″ DIAMETERC.A.R.B. APPROVED FILL CAP, NON VENTED, FOR FUEL INJECTION, INCLUDES LANYARDS
TKPS1033BK 3 1/2″ DIAMETERTHREADED CAP FOR POLY SUMP TANKS, C.A.R.B. APPROVED FILL CAP
TKPS1036BK POLY GAS TANK CAPCAN BE INSTALLED ON ANY TANK USING VDO OR AUTOMETER FUEL SENDERS WITH SIMPLE TANK MODIFICATION
TKPS1040BK 90-0 OHMTUBE STYLE, MARINE/AVIATION
PART NO.ALPINE
PICKUP
SPECIFICATIONSDESCRIPTION
2012113 1/2" DIAMETER C.A.R.B. APPROVED FILL CAP, NON VENTED, FOR FUEL INJECTION, INCLUDES LANYARDS
201211V3 1/2" DIAMETERTHREADED CAP FOR POLY SUMP TANKS, C.A.R.B. APPROVED FILL CAP
TKPSCAPPOLY TANK CAPCAN BE INSTALLED ON ANY TANK USING VDO OR AUTOMETER FUEL SENDERS
(WITH SIMPLE TANK MODIFICATION)
V22422590-0 OHMTUBE STYLE, MARINE/AVIATION

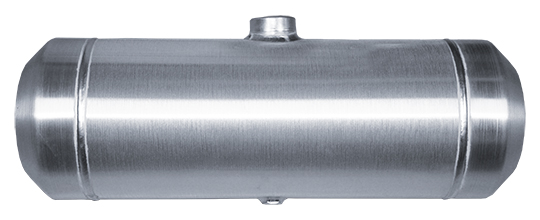

ALUMINUM CENTER FILL GAS TANK

ALUMINUM CENTER FILL GAS TANK

ALL TANKS COME WITH 1/4" NPT OUTLET
USE WITH 201217 OR 201215 CAPS

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO.ALPINE
PICKUP
GALDIALENGTH
TKA816C 3 1/28″16″
TKA830C 6 1/28″30″
TKA836C 7 3/48″36″
TKA1033C 11 1/410″33″
PART NO.ALPINE
PICKUP
GALDIALENGTH
TKA816C3 1/2 gallon8"16"
TKA830C6 1/2 gallon8"30"
TKA836C7 3/4 gallon8"36"
TKA1033C11 1/4 gallon10"33"

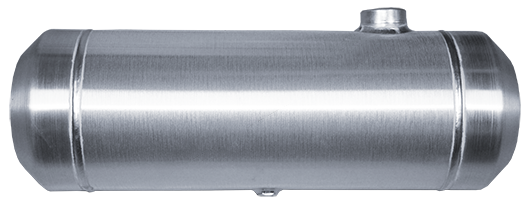

ALUMINUM END FILL GAS TANKS

ALUMINUM END FILL GAS TANK

ALL TANKS COME WITH 1/4" NPT OUTLET
USE WITH 201217 OR 201215 CAPS

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO.ALPINE
PICKUP
GALDIALENGTH
TKA824E 5 1/4 gallon8″24″
TKA830E 6 1/2 gallon8″30″
TKA833E 7 gallon8″33″
TKA836E 7 3/4 gallon8″36″
TKA1020E 6 3/4 gallon10″20″
TKA1024E 8 gallon10″24″
TKA1030E 10 gallon10″30″
TKA1033E 11 gallon10″33″
TKA1036E 12 1/4 gallon10″36″
TKA1040E 13 1/2 gallon10″40″
PART NO.ALPINE
PICKUP
GALDIALENGTH
TKA824E5 1/4 gallon8"24"
TKA830E6 1/2 gallon8"30"
TKA833E7 gallon8"33"
TKA836E7 3/4 gallon8"36"
TKA1020E6 3/4 gallon10"20"
TKA1024E8 gallon10"24"
TKA1030E10 gallon10"30"
TKA1033E11 gallon10"33"
TKA1036E12 1/4 gallon10"36"
TKA1040E13 1/2 gallon10"40"

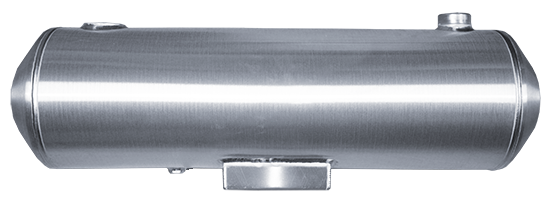

ALUMINUM END FILL GAS TANK WITH SUMP AND RETURN FITTING

ALUMINUM END FILL GAS TANK
WITH SUMP AND RETURN FITTING

ALL TANKS COME WITH 1/4" NPT OUTLET
USE WITH 201217 OR 201215 CAPS

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO.ALPINE
PICKUP
GALDIALENGTH
TKA830ES 6 /12 gallon8″30″
TKA833ES 7 gallon8″33″
TKA836ES 7 3/4 gallon8″36″
TKA1030ES 10 1/4 gallon10″30″
TKA1033ES 11 1/4 gallon10″33″
TKA1036ES 12 1/4 gallon10″36″
TKA1040ES 13 1/2 gallon10″40″
PART NO.ALPINE
PICKUP
GALDIALENGTH
TKA830ES6 /12 gallon8"30"
TKA833ES7 gallon8"33"
TKA836ES7 3/4 gallon8"36"
TKA1030ES10 1/4 gallon10"30"
TKA1033ES11 1/4 gallon10"33"
TKA1036ES12 1/4 gallon10"36"
TKA1040ES13 1/2 gallon10"40"
ALUMINUM END FILL GAS TANK WITH SUMP AND RETURN FITTING

ALUMINUM END FILL GAS TANK
WITH SUMP AND FUEL LEVEL SENDER MOUNT

ALL TANKS COME WITH 1/4" NPT OUTLET
USE WITH 201217 OR 201215 CAPS

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO.ALPINE
PICKUP
GALDIALENGTH
TKA830ESF 6 1/2 gallon8″30″
TKA833ESF 7 gallon8″33″
TKA836ESF 7 3/4 gallon8″36″
TKA1030ESF 10 1/4 gallon10″30″
TKA1033ESF 11 1/4 gallon10″33″
TKA1036ESF 12 1/4 gallon10″36″
TKA1040ESF 13 1/2 gallon10″40″
PART NO.ALPINE
PICKUP
GALDIALENGTH
TKA830ESF6 1/2 gallon8"30"
TKA833ESF7 gallon8"33"
TKA836ESF7 3/4 gallon8"36"
TKA1030ESF10 1/4 gallon10"30"
TKA1033ESF11 1/4 gallon10"33"
TKA1036ESF12 1/4 gallon10"36"
TKA1040ESF13 1/2 gallon10"40"

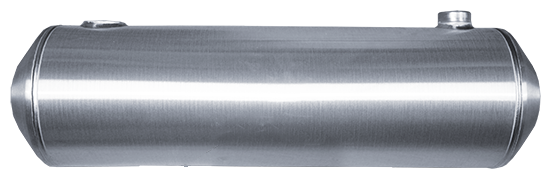

WITH FUEL LEVEL SENDER MOUNT

ALUMINUM END FILL GAS TANK
WITH FUEL LEVEL SENDER MOUNT

ALL TANKS COME WITH 1/4" NPT OUTLET
USE WITH 201217 OR 201215 CAPS

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO. ALPINE PICKUP GAL DIA LENGTH
TKA836EF 7 3/4 gallon 8″ 36″
TKA1030EF 10 1/4 gallon 10″ 30″
TKA1036EF 12 1/4 gallon 10″ 36″
TKA1040EF 13 1/2 gallon 10″ 40″
PART NO.ALPINE
PICKUP
GALDIALENGTH
TKA836EF 7 3/4 gallon8"36"
TKA1030EF10 1/4 gallon10"30"
TKA1036EF12 1/4 gallon10"36"
TKA1040EF13 1/2 gallon10"40"

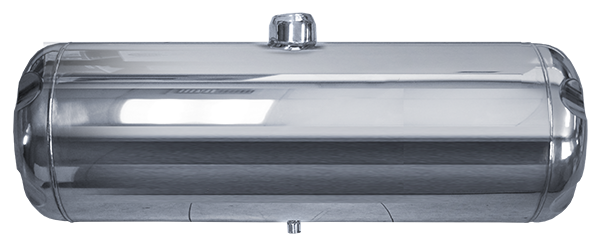

STAINLESS STEEL CENTER FILL

STAINLESS STEEL CENTER FILL GAS TANK

MATERIAL IS SAE430 STAINLESS STEEL
ORDER STRAPS AND CAPS SEPARATELY, ALL TANKS COME WITH 1/4" NPT OUTLET
USE WITH 201216 OR 201220 CAPS

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO.ALPINE
PICKUP
GALDIALENGTH
TKS816C 3 1/2 gallon8″16″
TKS824C 5 1/4 gallon8″24″
TKS830C 6 1/2 gallon8″30″
TKS833C 7 gallon8″33″
TKS836C 7 3/4 gallon8″36″
TKS1030C 10 1/4 gallon10″30″
TKS1033C 11 /14 gallon10″33″
TKS1036C 12 1/4 gallon10″36″
PART NO.ALPINE
PICKUP
GALDIALENGTH
TKS816C3 1/2 gallon8"16"
TKS824C5 1/4 gallon8"24"
TKS830C6 1/2 gallon8"30"
TKS833C7 gallon8"33"
TKS836C7 3/4 gallon8"36"
TKS1030C10 1/4 gallon10"30"
TKS1033C11 /14 gallon10"33"
TKS1036C12 1/4 gallon10"36"

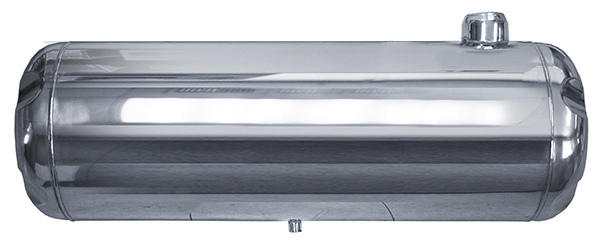

STAINLESS STEEL END FILL GAS TANK

STAINLESS STEEL END FILL GAS TANK

MATERIAL IS SAE430 STAINLESS STEEL
ORDER STRAPS AND CAPS SEPARATELY, ALL TANKS COME WITH 1/4" NPT OUTLET
USE WITH 201216 OR 201220 CAPS

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO. ALPINE PICKUP GAL DIA LENGTH
TKS824E 5 1/4 gallon 8″ 24″
TKS830E 6 1/2 gallon 8″ 30″
TKS833E 7 gallon 8″ 33″
TKS836E 7 3/4 gallon 8″ 36″
TKS1030E 10 1/4 gallon 10″ 30″
TKS1033E 11 1/4 gallon 10″ 33″
TKS1040E 13 1/2 gallon 10″ 40″
PART NO.ALPINE
PICKUP
GALDIALENGTH
TKS824E5 1/4 gallon8"24"
TKS830E6 1/2 gallon8"30"
TKS833E7 gallon8"33"
TKS836E7 3/4 gallon8"36"
TKS1030E10 1/4 gallon10"30"
TKS1033E11 1/4 gallon10"33"
TKS1040E13 1/2 gallon10"40"

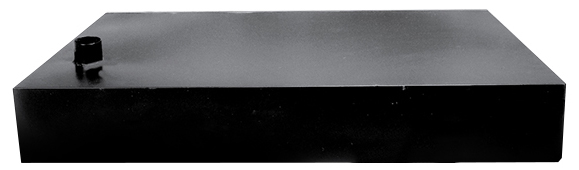

LONG RAGER GAS TANK

LONG RAGER GAS TANK

USE SEALANT BEFORE INSTALLING, REPLACES REAR SEDAN SEAT

(IF VIEWING ON A MOBILE DEVICE, SCROLL THROUGH TABLES BY SWIPING LEFT)

PART NO. ALPINE PICKUP GALLONS SPECIFICATIONS
201200 25 gallon OUTLET ON BOTTOM-1/2-20 UNF
PART NO.ALPINE PICKUPGALLONSSPECIFICATIONS
20120025 gallonOUTLET ON BOTTOM-1/2-20 UNF
