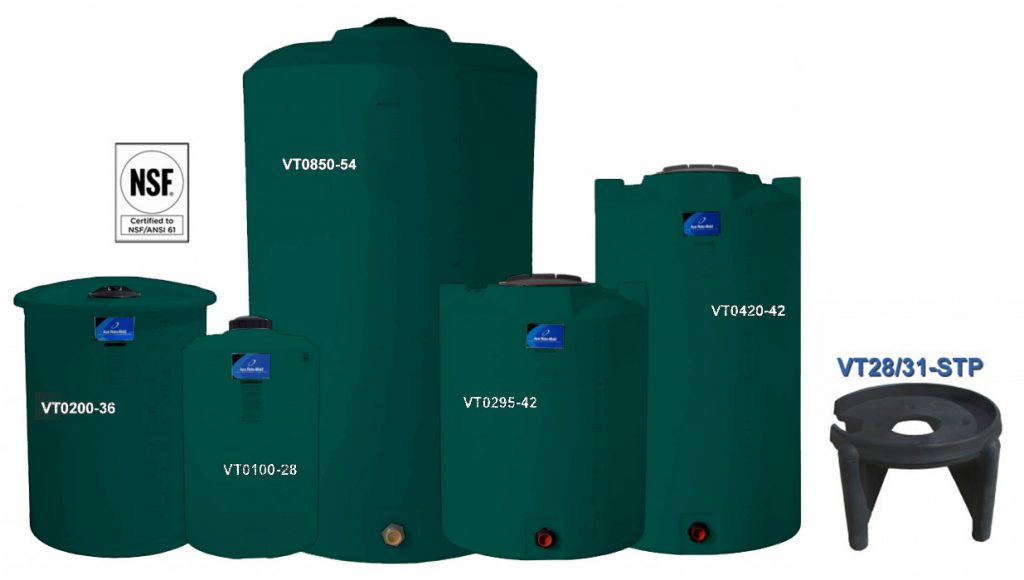

DEN HARTOG VERTICAL TANKS

Vertical - Flat Top tanks feature additional flats for fitting installation or mounting. Tank are free standing with a flat bottom for indoor or outdoor installations. Ace Roto-Mold Vertical Tanks conform to the requirements of NSF/ANSI Standard 61. Tanks are manufactured from medium- or high-density polyethylene with U.V. inhibitors.


Vertical – Dome Top tanks are free standing with a flat bottom for indoor or outdoor installations. Ace Roto-Mold Vertical Tanks conform to the requirements of NSF/ANSI Standard 61. Tanks are manufactured from medium- or high-density polyethylene with U.V. inhibitors.

CLICK ON PART NUMBER TO VIEW PDF DRAWING

DEN HARTOG VERTICAL TANKS
PART NO.Alpine PickupGallonsTopWtDimLIDFittingSecific
Gravity
VT0075-23G†
$159.00
75 gals FLAT 28 lbs 23 x 50 7″ 1″ 2.0
VT0225-31G
$345.00
225 gals FLAT 65 lbs 31 x 76 8″ 1-1/2″ 2.0
VT0265-31G
$373.00
265 gals FLAT 74 lbs 31 x 88 8″ 1-1/2″ 2.0
VT0300-42G
$366.00
300 gals DOME 73 lbs 42 x 55 8″ 2″ 2.0
VT0500-46G
$538.00
500 gals FLAT 120 lbs 46 x 77 8″ 2″ 2.0
VT0625-64G
$493.00
625 gals DOME 100 lbs 64 x 50 8″ 2″ 2.0
VT0850-54G
$737.00
850 gals FLAT 182 lbs 54 x 94 8″ 2″ 1.7
VT1000-64G
$954.00
1,000 gals DOME 250 lbs 64 x 81 16″ 2″ 1.7
VT0100-28G†
$172.25 + $30.00 IF
IF = INBOUND FREIGHT
100 galsFLAT36 lbs28 x 457″1″2.0VT0105-23G
$178.20 + $30.00 IF
IF = INBOUND FREIGHT
105 galsFLAT40 lbs23 x 657″1″2.0VT0135-28G
$199.75 + $40.00 IF
IF = INBOUND FREIGHT
135 galsFLAT47 lbs28 x 598″1″2.0VT0160-28G
$241.75 + $40.00 IF
IF = INBOUND FREIGHT
160 galsFLAT58 lbs28 x 688″1″2.0

VERTICAL TANK STAND

Stands are designed to hold vertical bulk storage tanks or open top vertical bulk storage tanks. Tank stands are made of metal or polyethylene as indicated and the VT-ST052FF is foam-filled.

View technical drawings by clicking on the part number below.

CLICK ON PART NUMBER TO VIEW PDF DRAWING
TANK STANDS
Part No.Apline PickupCapacityWeightDimensions
VT28/31-STP†
$163.00
31-1/2″ Poly Stand 35 39 x 24
